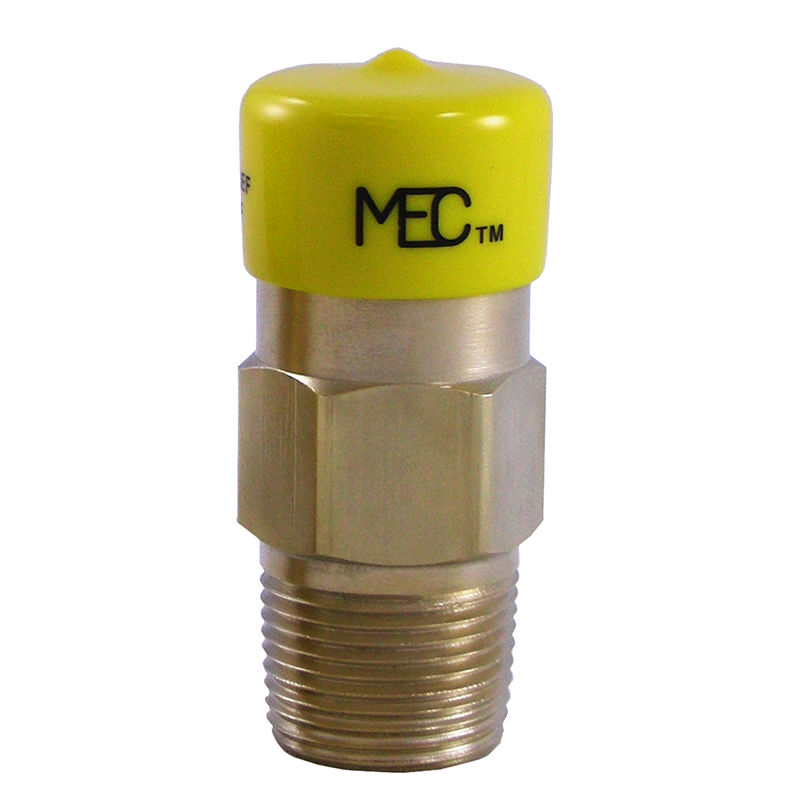

MEV75-312

Visit Product Series:

Designed for installation in stationary ASME applications such as bulk plant, skid tanks, underground and above ground containers, as the primary pressure relief valve. NOTE: This valve and all working parts are to be installed outside the container. Therefore, to ensure proper operation of the valve, the valve must be protected from damage and inspections performed as prescribed by Marshall Excelsior.

Markets
Applications
Accessories MEP174 Pipeaway Adapter
Container Connection 3/4″ MNPT
Flow Capacity SCFM Air UL 120 Set Pressure
OAL 2-21/32″
product type 1/4″NPT ~ 1″ NPT
Seal Material Nitrile
start-to-discharge_setting_psig 312 PSIG
Wrench Hex 1-1/8″
