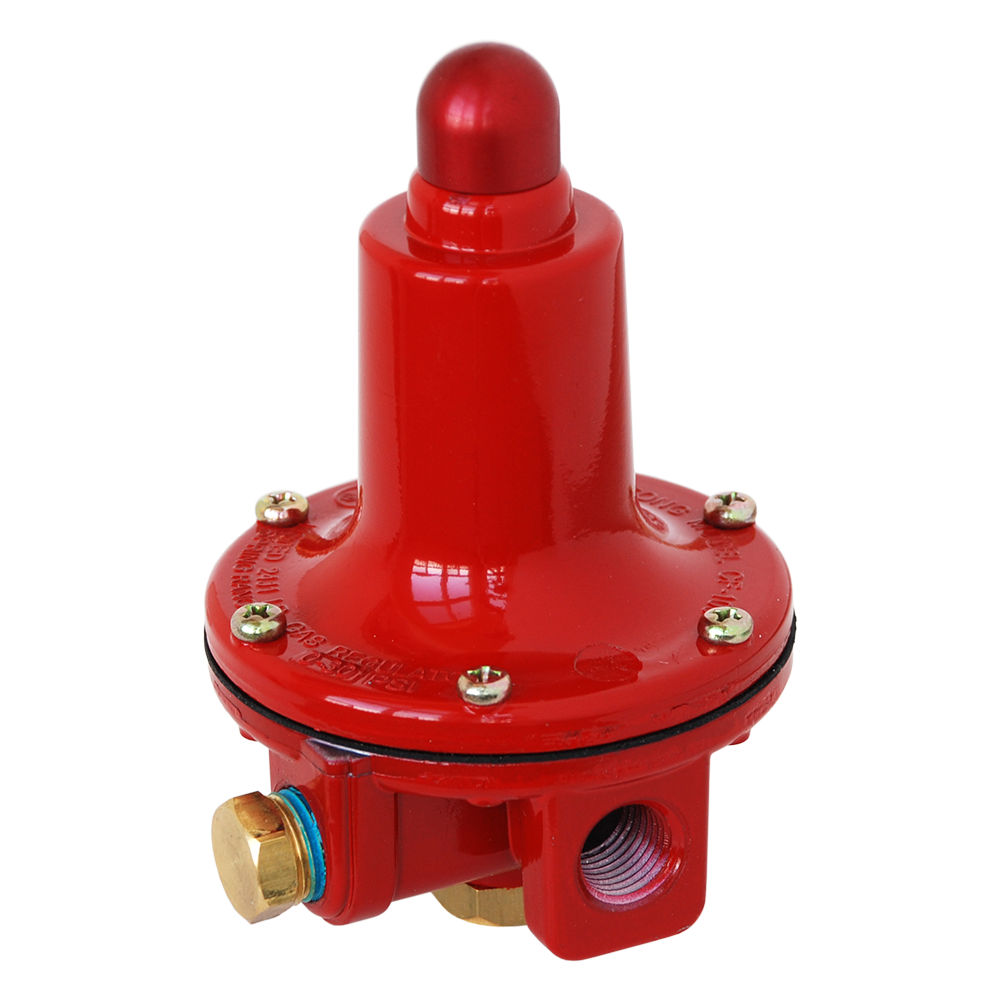

MEGR-6121-60

Visit Product Series:

UL listed as high pressure, non-relief regulators. Both MEGR-6120 & MEGR-6121 Series regulators contain brass materials that are not compatible with anhydrous ammonia service.

Markets
Applications
product type Fixed / PSI
specification Type: Adjustable or Fixed / PSI|Max. Inlet Pressure: 250 PSI (17, 2 bar)|Inlet Connection: 1/4″ FNPT|Outlet Connection: 1/4″ FNPT|Gauge Port: 1/4″ FNPT|Exterior Finish: Red Wet Coat|Diaphragm: Fabric Reinforced Buna N|Body / Bonnet Material: Die Cast Aluminum|Liquid Capacity: 3-5 GPH|Listings: UL LISTED / UL 144
