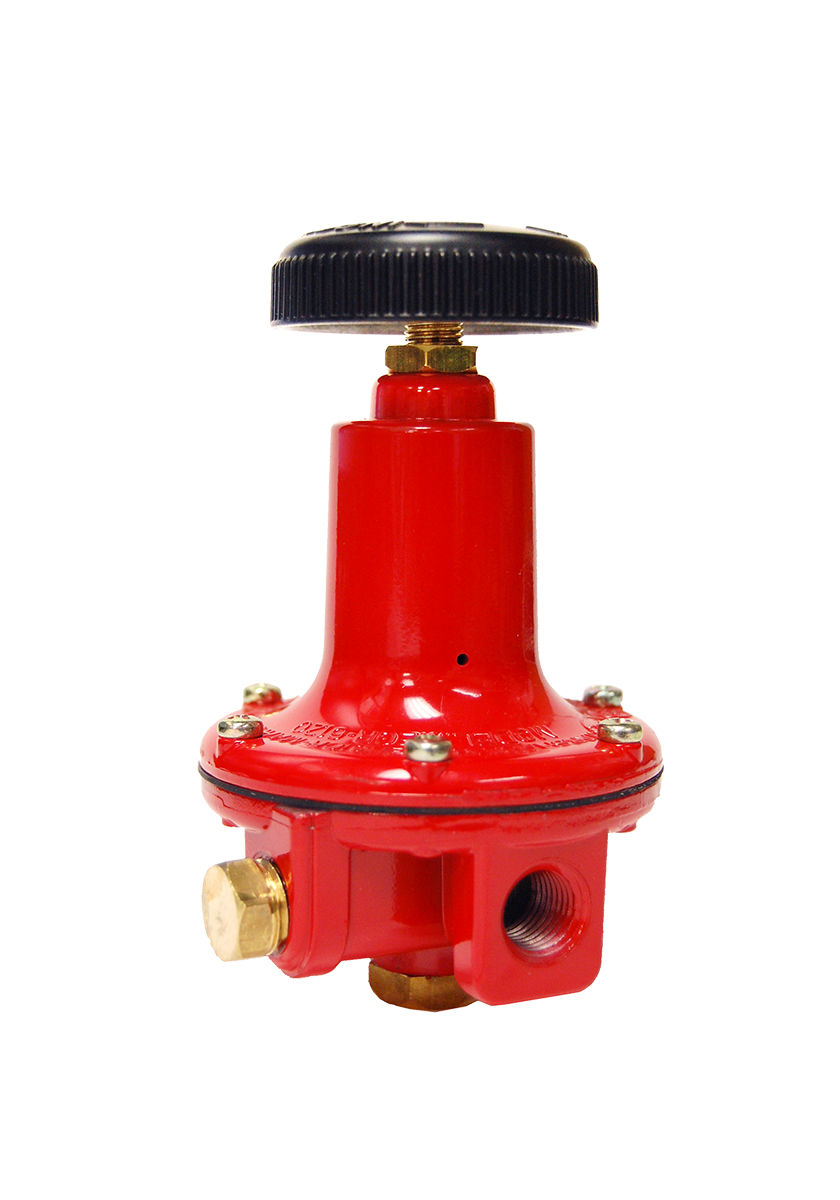

MEGR-6120-60

Visit Product Series:

UL listed high-pressure regulators that meet a variety of applications for liquid or vapor service. The compact body design makes these regulators particularly useful in installations with space limitations. The basic MEGR-6120 Series regulators come equipped with a handwheel adjustment. The non-adjustable ME6121 Series provides a tamper-resistant spring case and one of seven fixed set points: 5, 10, 20, 30, 40, 50, or 60 PSI.

Markets
Applications
product type Adjustable
specification Type: Adjustable or Fixed / PSI|Max. Inlet Pressure: 250 PSI (17, 2 bar)|Inlet Connection: 1/4″ FNPT|Outlet Connection: 1/4″ FNPT|Gauge Port: 1/4″ FNPT|Exterior Finish: Red Wet Coat|Diaphragm: Fabric Reinforced Buna N|Body / Bonnet Material: Die Cast Aluminum|Liquid Capacity: 3-5 GPH|Listings: UL LISTED / UL 144
