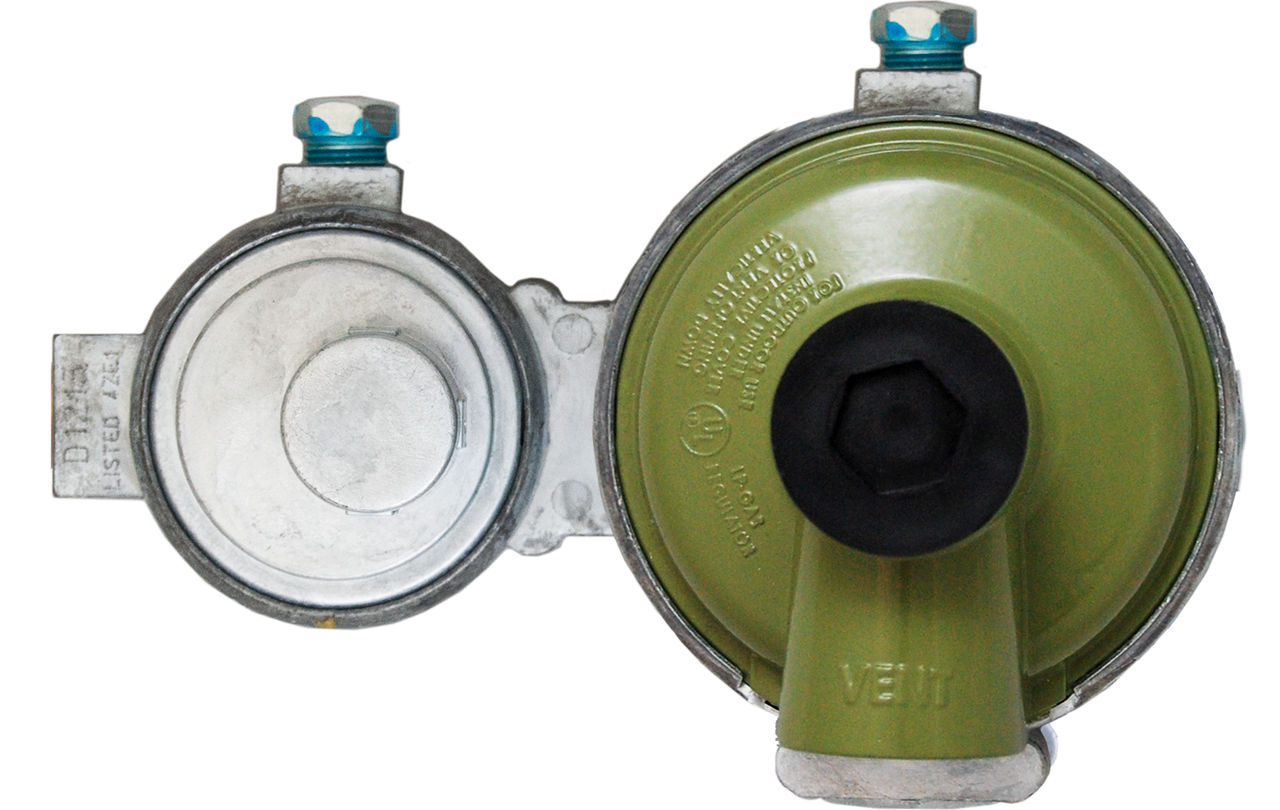

MEGR-298H
Visit Product Series:
Markets
Applications
Specifications
Accessories
MEGR-900 (Z-Bracket)
BTU H LPG 30 PSI Inlet
225000
Capacity
High
Inlet
1/4″ FNPT
Outlet
3/8″ FNPT
product type
High Capacity
specification
Type: Two Stage|Max. Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ FNPT|Outlet Connection: 3/8″ FNPT|Exterior Finish: Unfinished Zinc / Powder Coated|Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal|Diaphragm Type: Internal Relief - Spring Loaded|Bonnet/ Body Material: Die Cast Zinc|Listings: LISTED / UL 144|Mounting Holes: 3-1/2″ On Center|Pressure Taps: 1/8″ FNPT Plugged
Vent Orientation
90°
