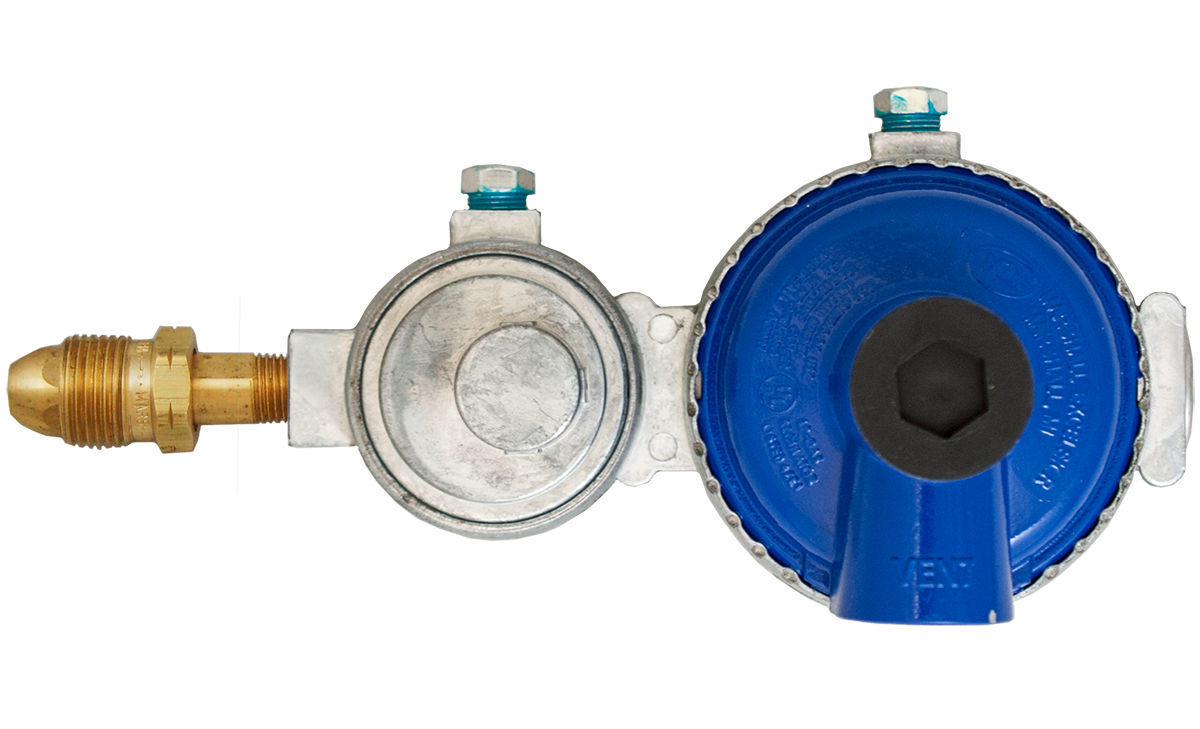

MEGR-295L

Visit Product Series:

two-stage regulators are approved for use in nearly all portable applications and outdoor cooking appliances utilizing low pressure. They feature all zinc body construction, high and low 1/8″ NPT pressure tap ports, an integral second stage drip lip vent and optional standard or 90 degree vent locations.

Markets
Applications
Accessories MEGR-861 (1st Stage Cover)
BTU H LPG 30 PSI Inlet 120000
Capacity Low
Inlet Hard Nose Excess Flow POL
Outlet 3/8″ FNPT
product type Low Capacity
specification Type: Two Stage|Max. Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ FNPT|Outlet Connection: 3/8″ FNPT|Exterior Finish: Unfinished Zinc / Powder Coated|Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal|Diaphragm Type: Internal Relief - Spring Loaded|Bonnet/ Body Material: Die Cast Zinc|Listings: LISTED / UL 144|Mounting Holes: 3-1/2″ On Center|Pressure Taps: 1/8″ FNPT Plugged
Vent Orientation 90°
