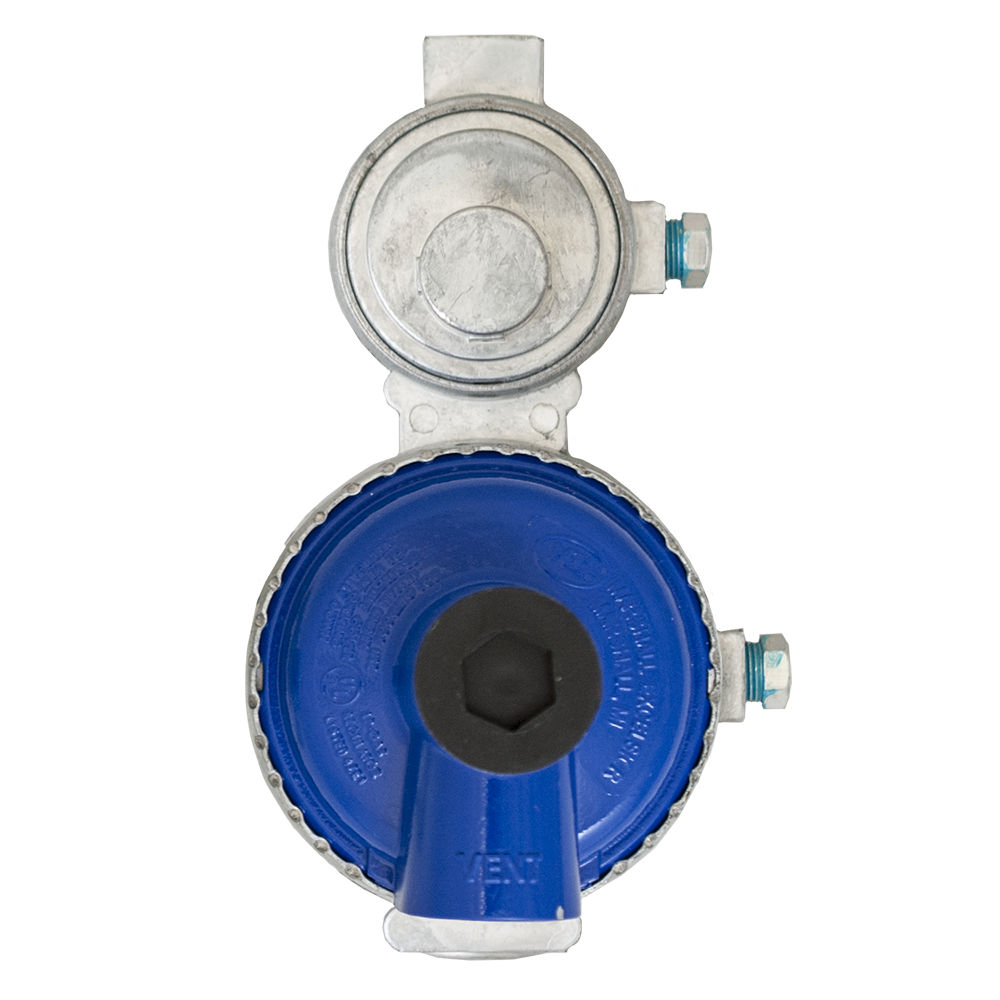

MEGR-291L

Visit Product Series:

specifically intended for application with low BTU demands but still require two stage regulation. The Model MEGR-291L is ideally suited for RV, manufactured homes, cabins or other applications with one appliance or low BTU multiple appliance applications while still permitting maximum range of output pressure adjustment.

Markets
Applications
Accessories MEGR-RVB (L- Bracket)
BTU H LPG 30 PSI Inlet 120000
Capacity Low
Inlet 1/4″ FNPT
Outlet 3/8″ FNPT
product type Low Capacity
specification Type: Two Stage|Max. Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ FNPT|Outlet Connection: 3/8″ FNPT|Exterior Finish: Unfinished Zinc / Powder Coated|Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal|Diaphragm Type: Internal Relief - Spring Loaded|Bonnet/ Body Material: Die Cast Zinc|Listings: LISTED / UL 144|Mounting Holes: 3-1/2″ On Center|Pressure Taps: 1/8″ FNPT Plugged
Vent Orientation Over Outlet
