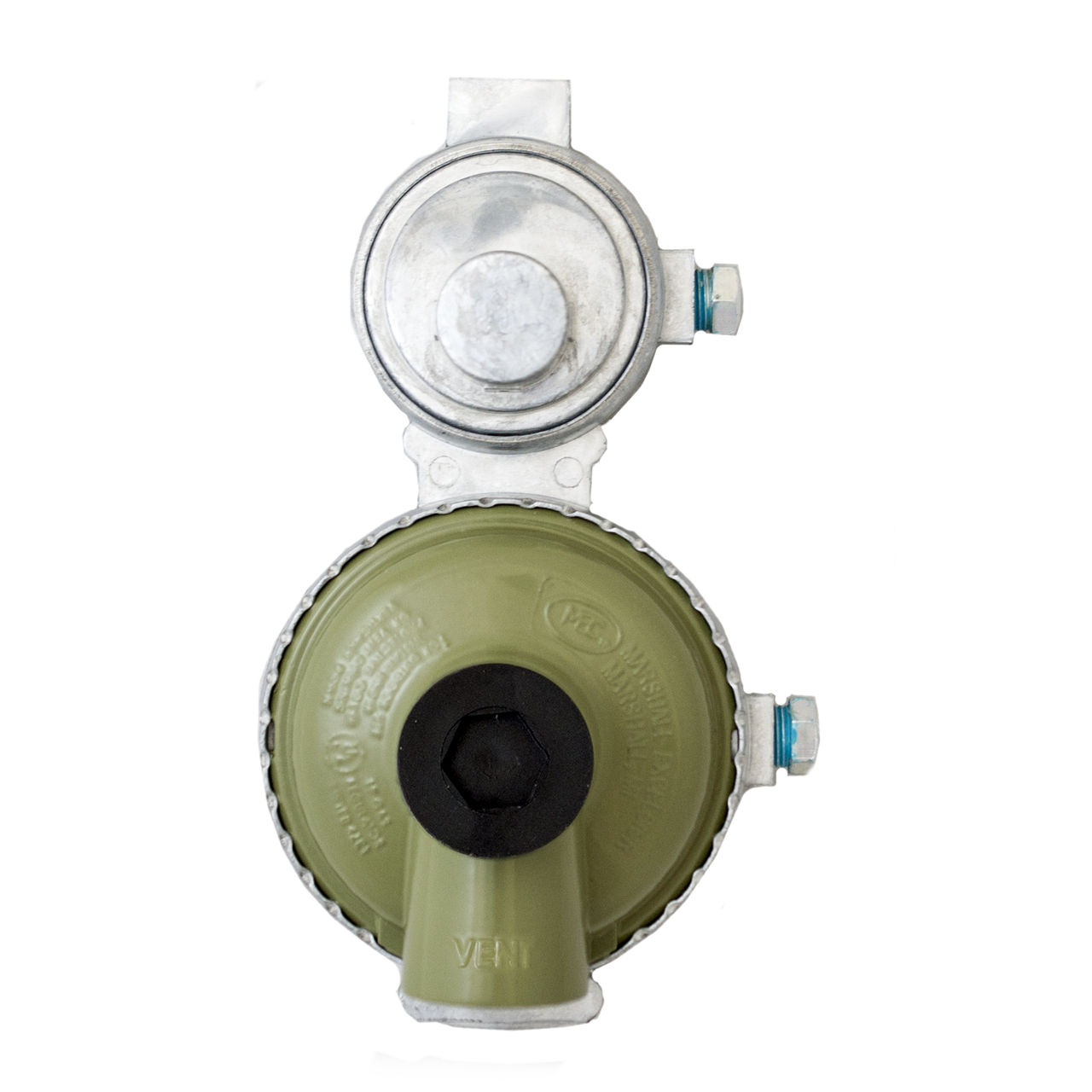

MEGR-291H

Visit Product Series:

ideally suited for high demand RV, outdoor appliances, cabins, seasonal homes, gas fire places, water heaters, ranges or other moderate to low demand domestic home installations.(Green bonnet identifies high capacity model).

Markets
Applications
Accessories MEGR-RVB (L- Bracket)
BTU H LPG 30 PSI Inlet 225000
Capacity High
Inlet 1/4″ FNPT
Outlet 3/8″ FNPT
product type High Capacity
specification Type: Two Stage|Max. Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ FNPT|Outlet Connection: 3/8″ FNPT|Exterior Finish: Unfinished Zinc / Powder Coated|Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal|Diaphragm Type: Internal Relief - Spring Loaded|Bonnet/ Body Material: Die Cast Zinc|Listings: LISTED / UL 144|Mounting Holes: 3-1/2″ On Center|Pressure Taps: 1/8″ FNPT Plugged
Vent Orientation Over Outlet
