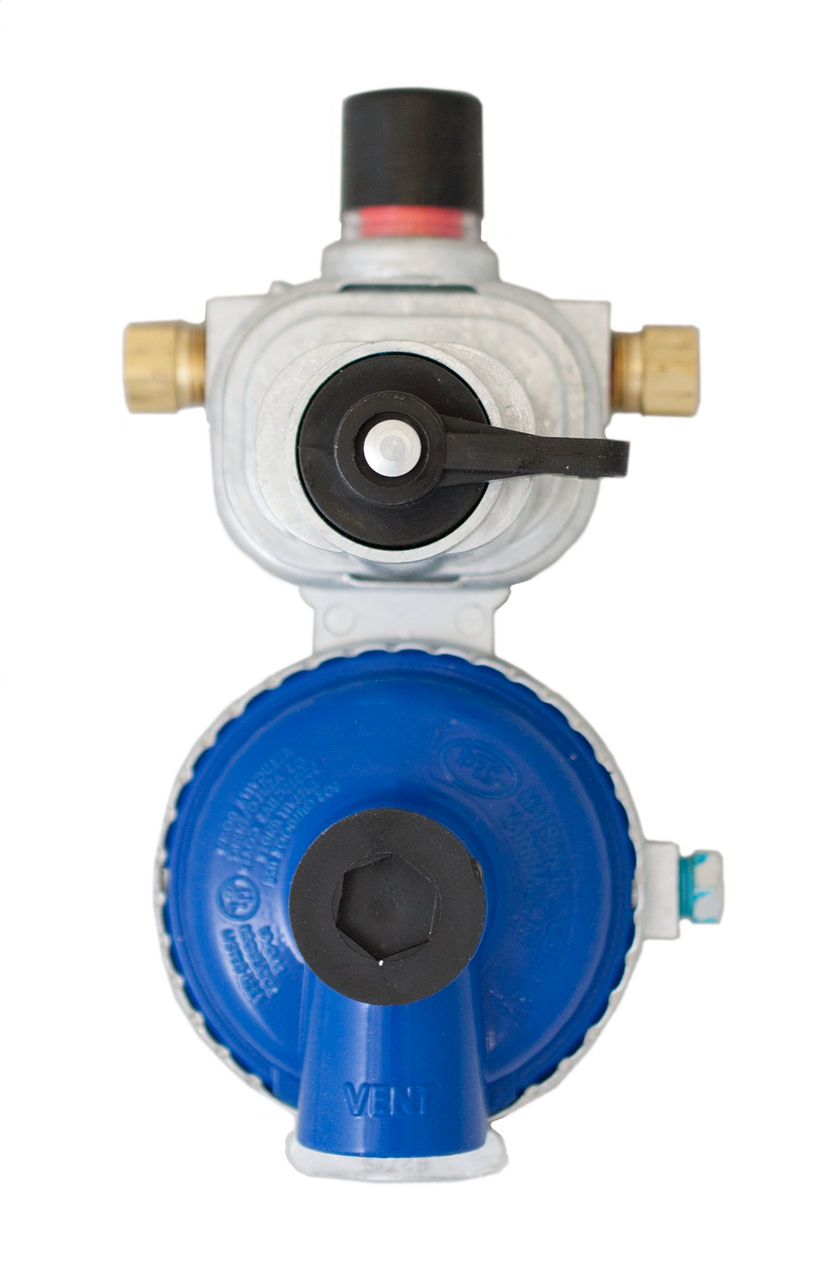

MEGR-253L

Visit Product Series:

specifically intended for application with low BTU demands but still require two stage regulation. The Model MEGR-253L is ideally suited for RV, manufactured homes, cabins or other applications with a single appliance or low BTU multiple appliance applications while still permitting maximum range of output pressure adjustment.

Markets

Applications

Specifications

Covers MEGR-862

Mounting Bracket MEGR-900 or MEGR-RVB

Primary Cylinder BTU Hr 150000

product type Low Capacity

Reserve Cylinder BTU Hr 100000

specification Type: Two Stage|Max Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ Female Inverted Flare (2)|Outlet Connection: 3/8″ FNPT (1)|Exterior Finish: Unfinished Zinc (MEGR-253), Powder Coat (MEGR-253H & 253L)|Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Zinc|Listings: LISTED / UL 144|Mounting Holes: 3-1/2″ On Center|Pressure Taps: 1/8″ FNPT, Plugged (1)
