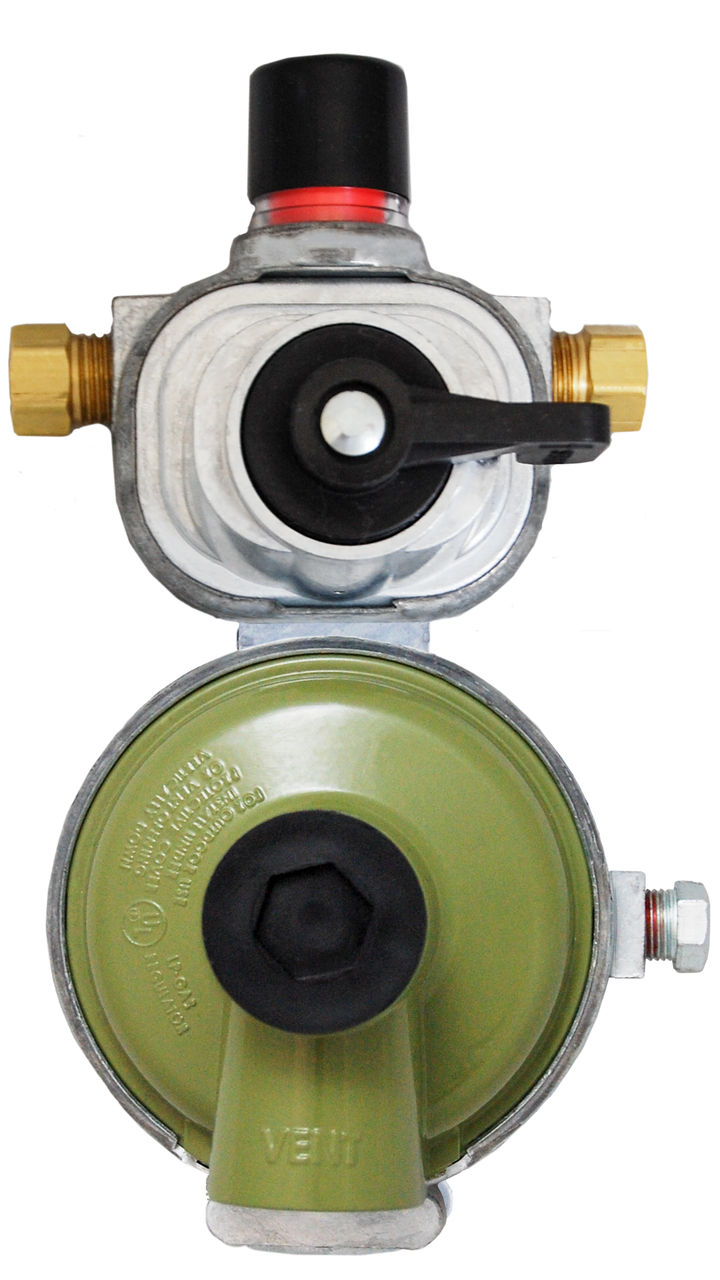

MEGR-253H

Visit Product Series:

As a two-stage high-pressure regulator, the MEGR-253H reduces container pressure to approximately 10 to 15 PSIG and then the second stage completes the process by reducing inlet pressure down to 11 inches of water column outlet pressure.

Markets

Applications

Specifications

Covers MEGR-862

Mounting Bracket MEGR-900 or MEGR-RVB

Primary Cylinder BTU Hr 350000

product type High Capacity

Reserve Cylinder BTU Hr 200000

specification Type: Two Stage|Max Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ Female Inverted Flare (2)|Outlet Connection: 3/8″ FNPT (1)|Exterior Finish: Unfinished Zinc (MEGR-253), Powder Coat (MEGR-253H & 253L)|Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Zinc|Listings: LISTED / UL 144|Mounting Holes: 3-1/2″ On Center|Pressure Taps: 1/8″ FNPT, Plugged (1)
