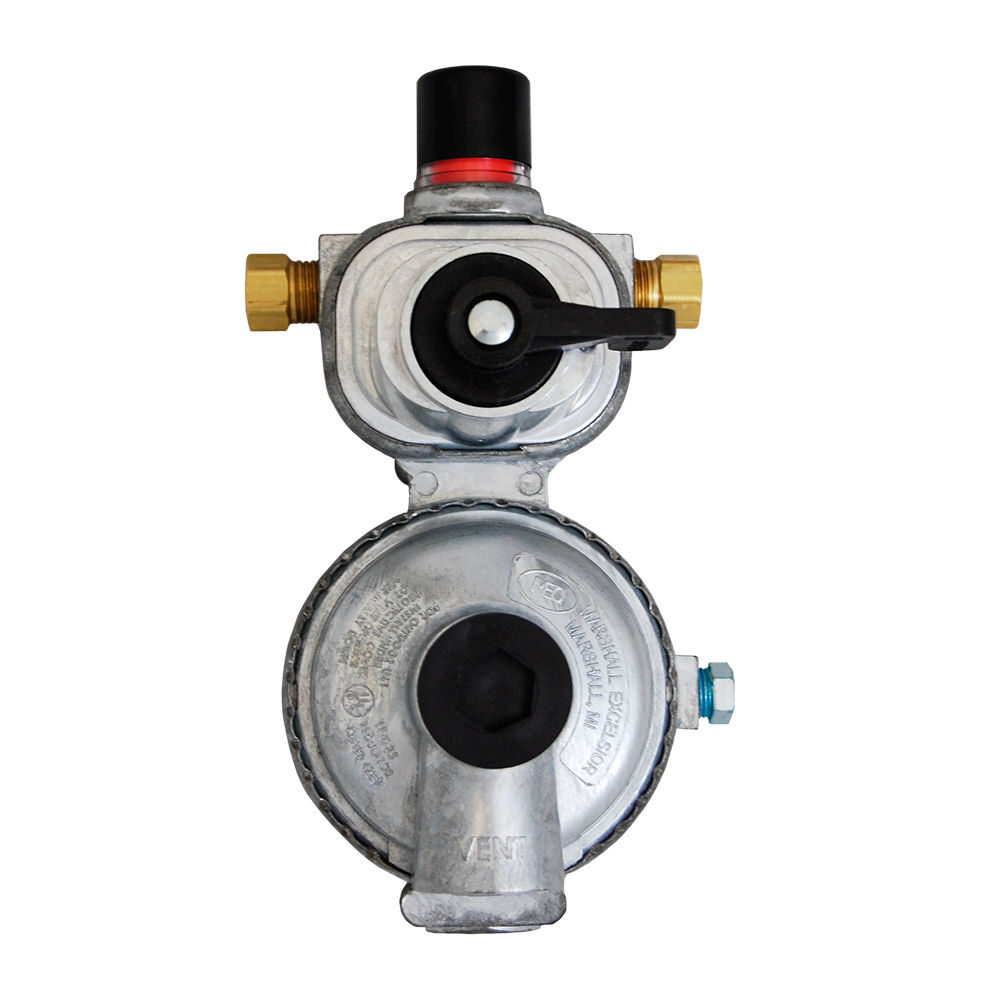

MEGR-253

Visit Product Series:

Automatic Changeover regulators automatically redirect LP gas vapor flow from an empty service cylinder to a reserve cylinder, without interruption of service. It features and benefits an easy to read green indicator which changes to red when the service cylinder needs to be refilled.

Markets
Applications
Covers MEGR-862
Mounting Bracket MEGR-900 or MEGR-RVB
Primary Cylinder BTU Hr 225000
product type Standard Capacity
Reserve Cylinder BTU Hr 150000
specification Type: Two Stage|Max Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ Female Inverted Flare (2)|Outlet Connection: 3/8″ FNPT (1)|Exterior Finish: Unfinished Zinc (MEGR-253), Powder Coat (MEGR-253H & 253L)|Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Zinc|Listings: LISTED / UL 144|Mounting Holes: 3-1/2″ On Center|Pressure Taps: 1/8″ FNPT, Plugged (1)
