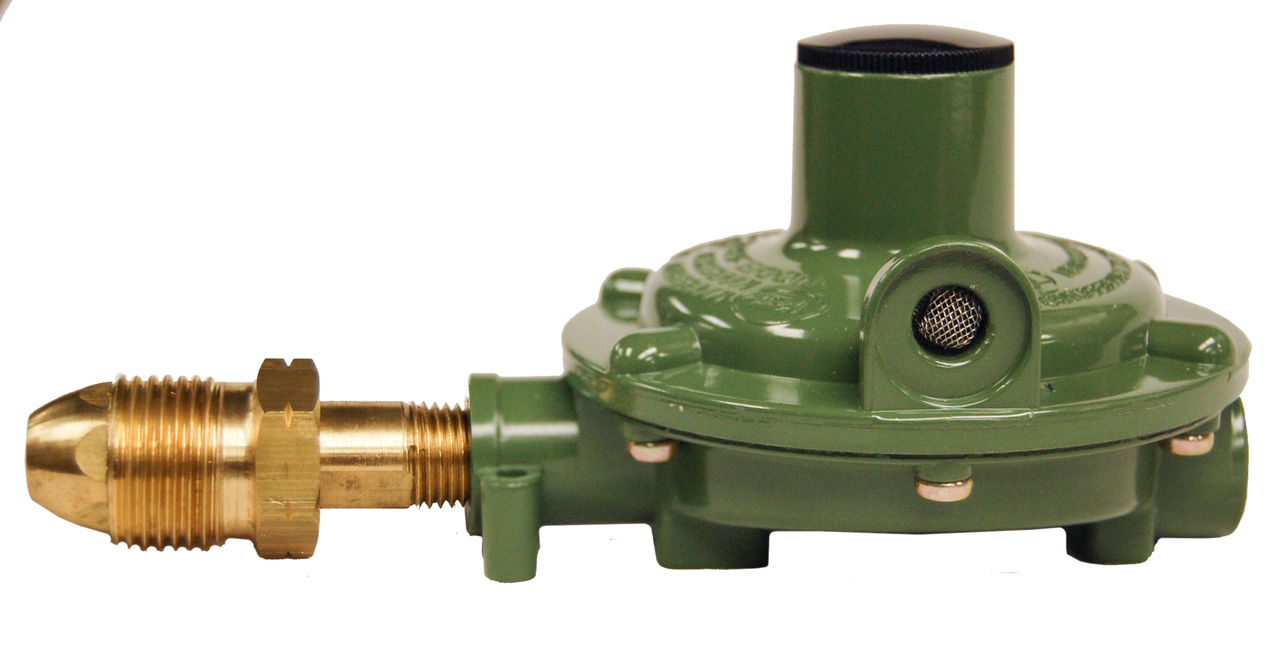

    MEGR-231

    Visit Product Series:

    These single-stage regulators are approved for use in small portable applications and outdoor cooking appliances utilizing low pressure.

    Markets
    Applications
    Certification
    Documents
    Installation Guides
    Specifications
    Outlet Pressure Setting 11-inches w.c. (27 mbar)
    product type Low Pressure
    specification Type: Single Stage|Orifice Diameter: 0.059″ Diameter|BTU Capacity: 140,000 BTU (based on 25 PSI inlet @ 20% droop)|Max. Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ FNPT|Outlet Connection: 3/8″ FNPT|Exterior Finish: Green Wet Coat|Diaphragm Type: Molded with O-Ring Bonnet / Body Seal|Bonnet/Body Material: Die Cast Aluminum|Listings: LISTED / UL 144|Mounting Holes: 1″ On Center
    Vent Orientation 90°
