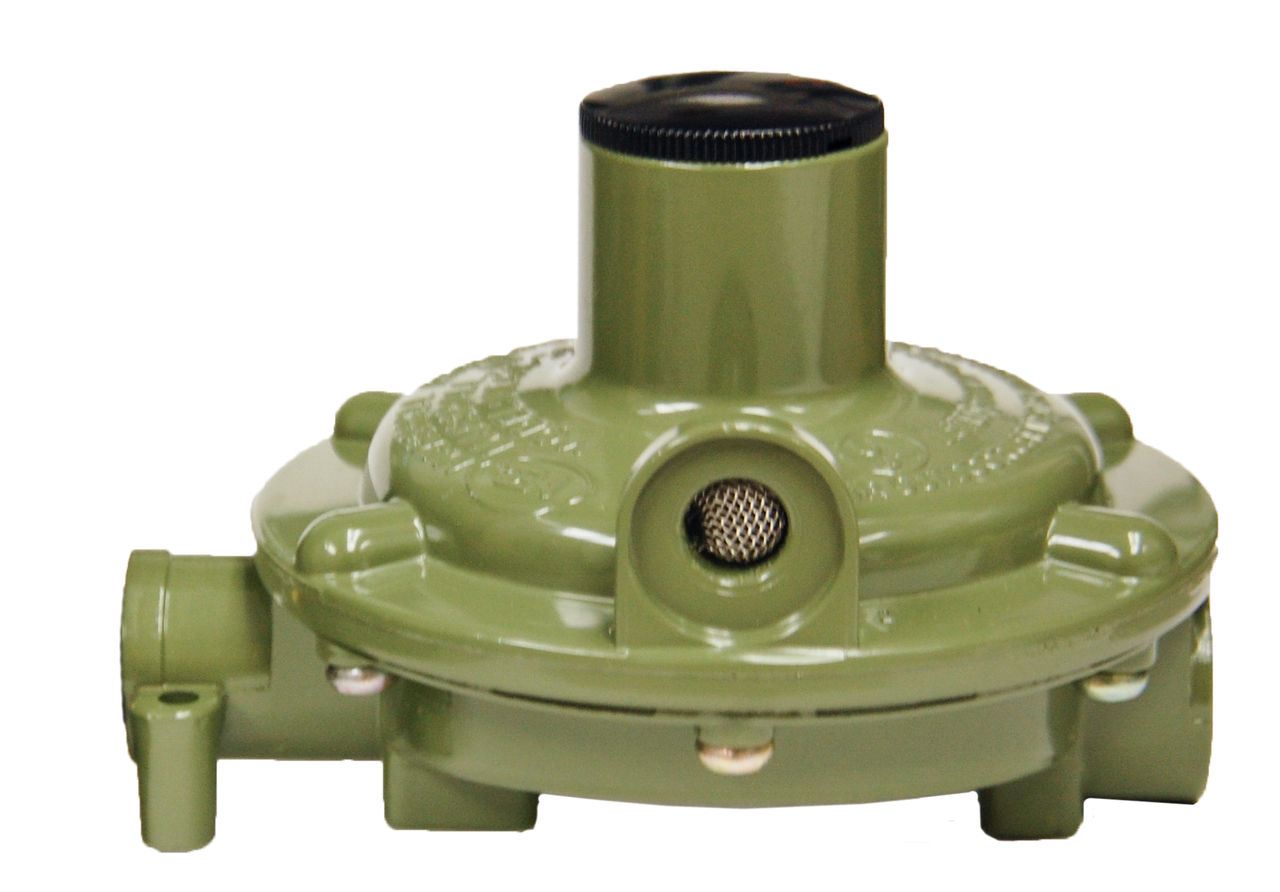

MEGR-230-90
Visit Product Series:
Markets
Applications
Specifications
Outlet Pressure Setting
11-inches w.c. (27 mbar)
product type
Low Pressure
specification
Type: Single Stage|Orifice Diameter: 0.059″ Diameter|BTU Capacity: 140,000 BTU (based on 25 PSI inlet @ 20% droop)|Max. Inlet Pressure: 250 PSI|Inlet Connection: 1/4″ FNPT|Outlet Connection: 3/8″ FNPT|Exterior Finish: Green Wet Coat|Diaphragm Type: Molded with O-Ring Bonnet / Body Seal|Bonnet/Body Material: Die Cast Aluminum|Listings: LISTED / UL 144|Mounting Holes: 1″ On Center
Vent Orientation
90°
