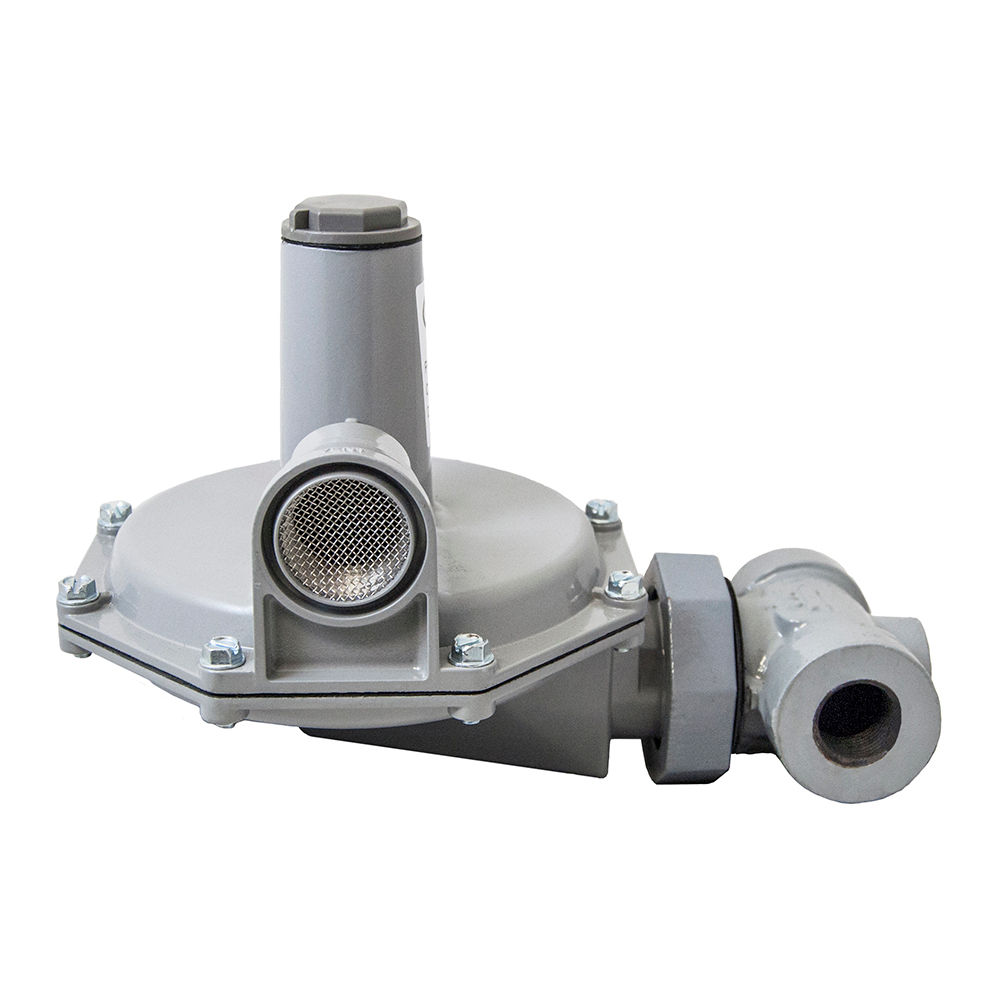

MEGR-1HSRL-BFC

Visit Product Series:

Offers a full size high capacity light commercial type regulator with an adjustment range from 6-14″ WC (factory set @ 11″ WC), a heavy duty cast iron body with a universal body to bonnet union for fast relocation of inlet to outlet vent location. These light commercial second stage regulators are used to reduce outlet pressures from first stage regulators (normally 10 PSI) to 11″ WC.

Markets
Applications
BTU H LPG 10 PSI Inlet 2000000
BTU H LPG 25 PSI Inlet
Inlet 3/4″ FNPT Connection Style
Maximum Operating Inlet Pressure 40 PSIG
Orifice 3/8″
Outlet 3/4″ FNPT Connection Style
Outlet Pressure Range 6-14″ WC
Outlet Pressure Setting 11″ WC
product type Adjustable / Inches WC or PSI
specification Type: Adjustable / Inches WC or PSI|Orifice Diameter: 3/8″, 5/16″, 1/2″ or 1″|Max. Inlet Pressure: 25 PSIG|Body Material: Cast Iron|Regulator Spring: Music Wire|Spring Case/ Stem Guide/ Disk Holder: Aluminum|Disk/ Diaphragm and O-Ring: Fabric Reinforced Nitrile (NBR)|Closing Cap Gasket: Neoprene
