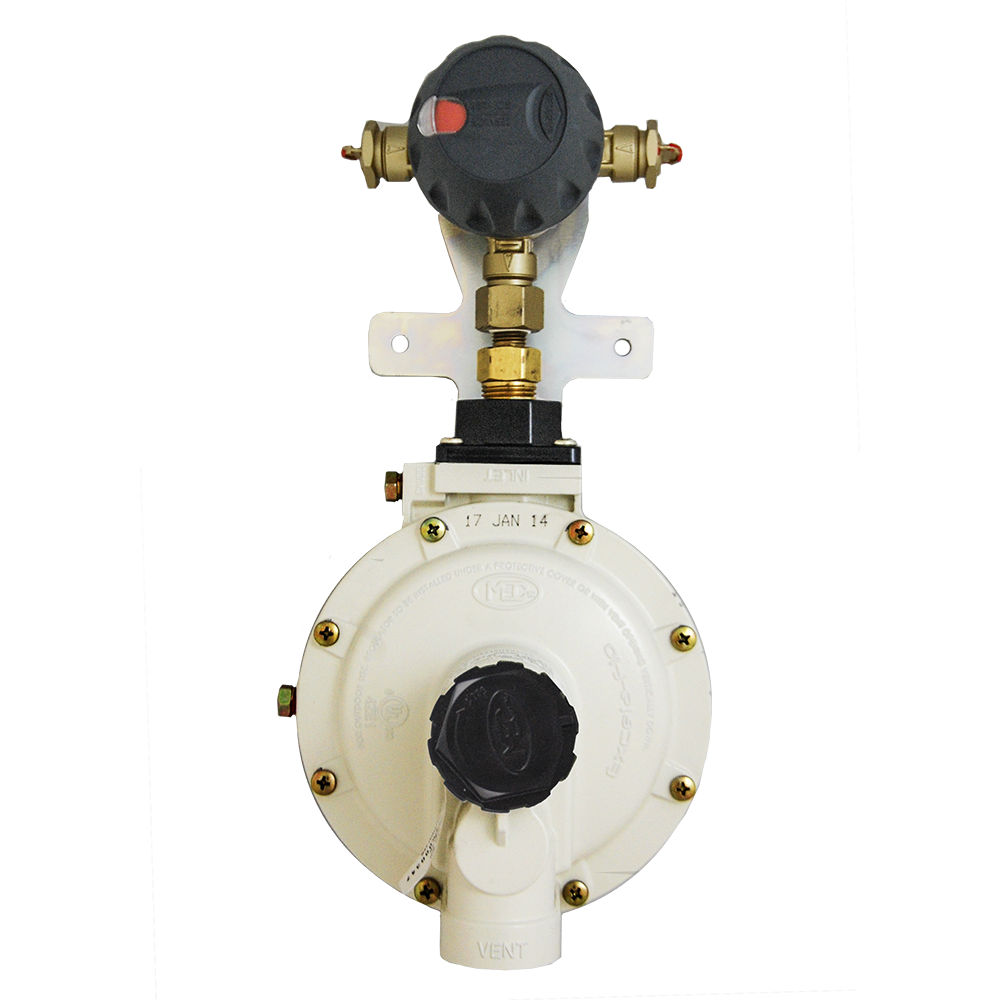

MEGR-175CS61622E-BCF

Visit Product Series:

Offers all of the same features_and_benefits as the compact MEGR-175S61222 series but with a full size high capacity second stage regulator option. The full size second stage diaphragm provides superior downstream regulation and features and benefits heavy duty wrench flats and a large 3/4″ FNPT tapped drip lip vent to help prevent relief vent blockage. This regulator is perfect for manifolding larger tanks together such as 420 LB cylinders.

Markets

Applications

Specifications

Auxiliary Cylinder Capacity in BTU H LPG 1 525000

Inlet 1/4″ IF (2)

Outlet 1/2″ FNPT

Outlet Adj Range WC 1.0-2.2 PSI

Outlet Set Point WC 2 PSI

Primary-Cylinder Capacity in BTU H LPG 1 625000

product type Full Size - 2 PSI

specification Type: Automatic Changeover Two-Stage|Max. Inlet Pressure: 250 PSIG|Exterior Finish: Gold / Green Powder Coat|Orifice Size: 0.140″ (Compact) & 0.219″ (Full)|Seat Material: (NBR) 1st Stage, Fluorocarbon (FKM) 2nd Stage|Diaphragm: Fabric Reinforced (NBR) / Molded Lip O-Ring Bonnet/Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Zinc/Plastic 1st Stage, Die Cast Aluminum 2nd Stage|Listings: C US / UL 144 2nd Stage|Mounting Holes: Standard 3-1/2″ Center|Pressure Taps: #54 Orifice, 1/8″ FNPT, Plugged (1)|Relief Travel Stop: Molded in Adjustment Cap - Gray (Compact), Black (Full Size)

Type Full Size
