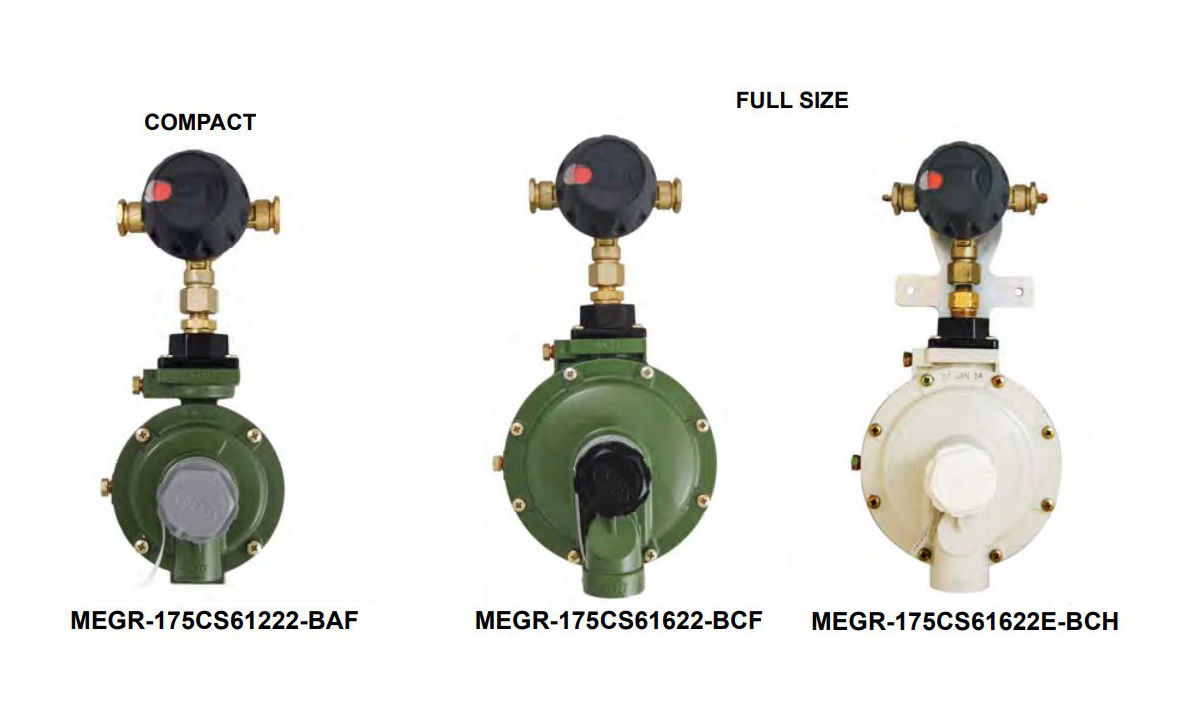

MEGR-175CS61222-BAF

Visit Product Series:

Offers a compact two stage regulator option for lower BTU applications such as mobile or seasonal homes. They feature a second stage adjustment from 8-14″ WC (factory set @ 11″ WC), stainless steel internal components, fluorocarbon (FKM) seat discs, molded lip fabric reinforced diaphragms, and large precision machined aluminum orifices providing superior downstream regulation and maximum resistance against weather or contaminated gas. The compact second stage features and benefits a 3/8″ FNPT drip lip vent.

Markets

Applications

Specifications

Auxiliary Cylinder Capacity in BTU H LPG 1 340000

Inlet 1/4″ IF (2)

Outlet 1/2″ FNPT

Outlet Adj Range WC 41522

Outlet Set Point WC 11

Primary-Cylinder Capacity in BTU H LPG 1 400000

product type Compact

specification Type: Automatic Changeover Two-Stage|Max. Inlet Pressure: 250 PSIG|Exterior Finish: Gold / Green Powder Coat|Orifice Size: 0.140″ (Compact) & 0.219″ (Full)|Seat Material: (NBR) 1st Stage, Fluorocarbon (FKM) 2nd Stage|Diaphragm: Fabric Reinforced (NBR) / Molded Lip O-Ring Bonnet/Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Zinc/Plastic 1st Stage, Die Cast Aluminum 2nd Stage|Listings: C US / UL 144 2nd Stage|Mounting Holes: Standard 3-1/2″ Center|Pressure Taps: #54 Orifice, 1/8″ FNPT, Plugged (1)|Relief Travel Stop: Molded in Adjustment Cap - Gray (Compact), Black (Full Size)

Type Compact
