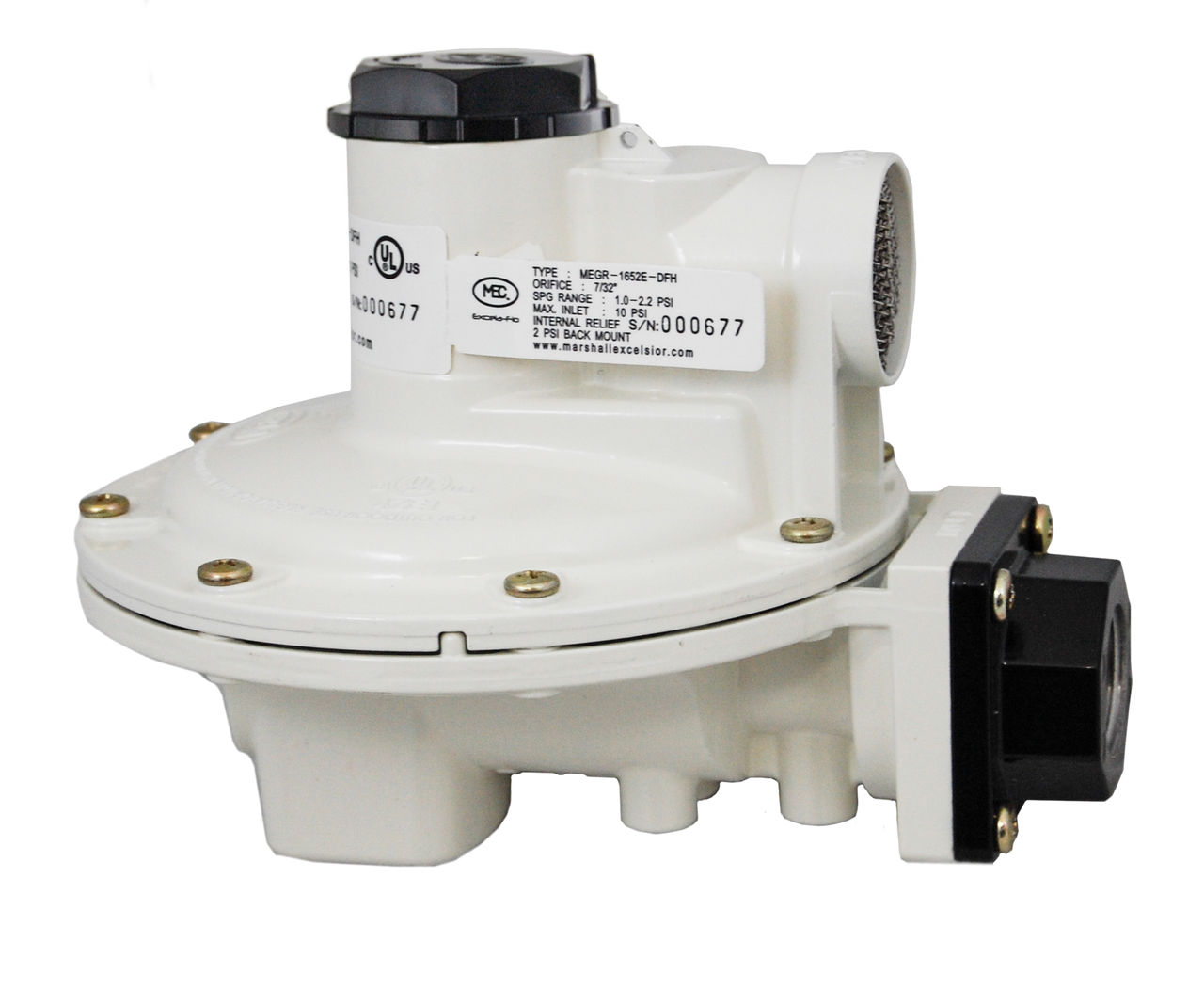

    MEGR-1652E-DFH

    Visit Product Series:

    Offers all of the same features and benefits as the MEGR-1622E Series but with a rear discharge back mount outlet for convenient wall mount applications.

    Markets
    Applications
    Certification
    Documents
    Installation Guides
    Specifications
    Capacity in BTU H LPG 1 1300000
    Inlet 3/4″ FNPT
    Outlet 3/4″ FNPT
    Outlet Adj Range PSI 1.0-2.2
    Outlet Set Point PSI 2
    product type Full Size Back Mount - 2 PSI
    specification Type: Second Stage 2 PSI|Max. Inlet Pressure: 10 PSI|Exterior Finish: White Powder Coat|Interior Finish: White Powder Coat|Orifice Size: 0.219″|Seat Material: Fluorocarbon (FKM)|Diaphragm: Fabric Reinforced (NBR) / Molded Lip O-Ring Bonnet/Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Aluminum|Listings: C US / UL 144|Mounting Holes: Standard 3-1/2″ Center|Pressure Taps: #54 Orifice, 1/8″ FNPT, Plugged (2)|Relief Travel Stop: Molded in Adjustment Cap - Black
    Type Full Size Back Mount
    Vent Port 3/4″ FNPT
