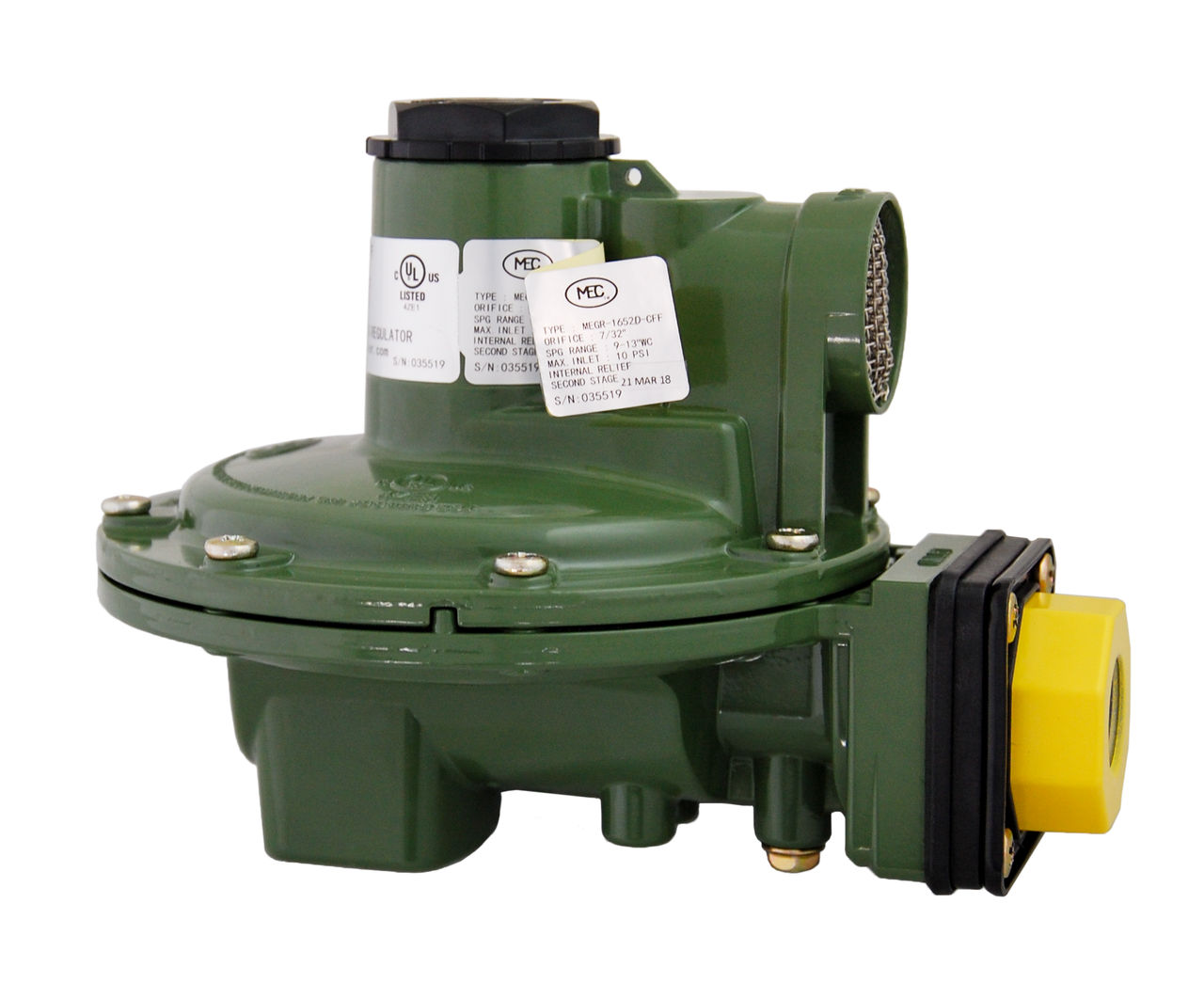

MEGR-1652D-DFF

Visit Product Series:

feature inlet and outlets that are inline, while the MEGR-1252D and MEGR-1652D offer a convenient rear back mount discharge outlet. The MEGR-1642D Series offers a side discharge located 90 degrees from the inlet making it ideal for installations with horizontal piping including those with vapor metering systems.

Markets

Applications

Specifications

Capacity in BTU H LPG 1 1000000

Inlet 3/4″ FNPT

Outlet 3/4″ FNPT

Outlet Adj Range WC 45913

Outlet Set Point WC 11

product type Full Size Back Mount

specification Type: Second Stage|Max. Inlet Pressure: 10 PSIG|Exterior Finish: Green Powder Coat Body and Yellow Powder Coat Inlet|Interior Finish: Green Powder Coat|Orifice Size: Compact - .14″ (BAF), 0.17″ (CFF & DFF) / Full - 0.219″|Diaphragm: Fabric Reinforced (NBR) Molded Lip O-Ring Bonnet/Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Aluminum|Seat Material: Fluorocarbon (FKM)|Listings: C US / UL 144|Mounting Holes: Standard 3-1/2″ Center|Pressure Taps: #54 Orifice 1/8″ FNPT Plugged (2)|Relief Travel Stop: Molded In Adjustment Cap - Black (Full Size), Gray (Compact)

Type Full Size Back Mount
