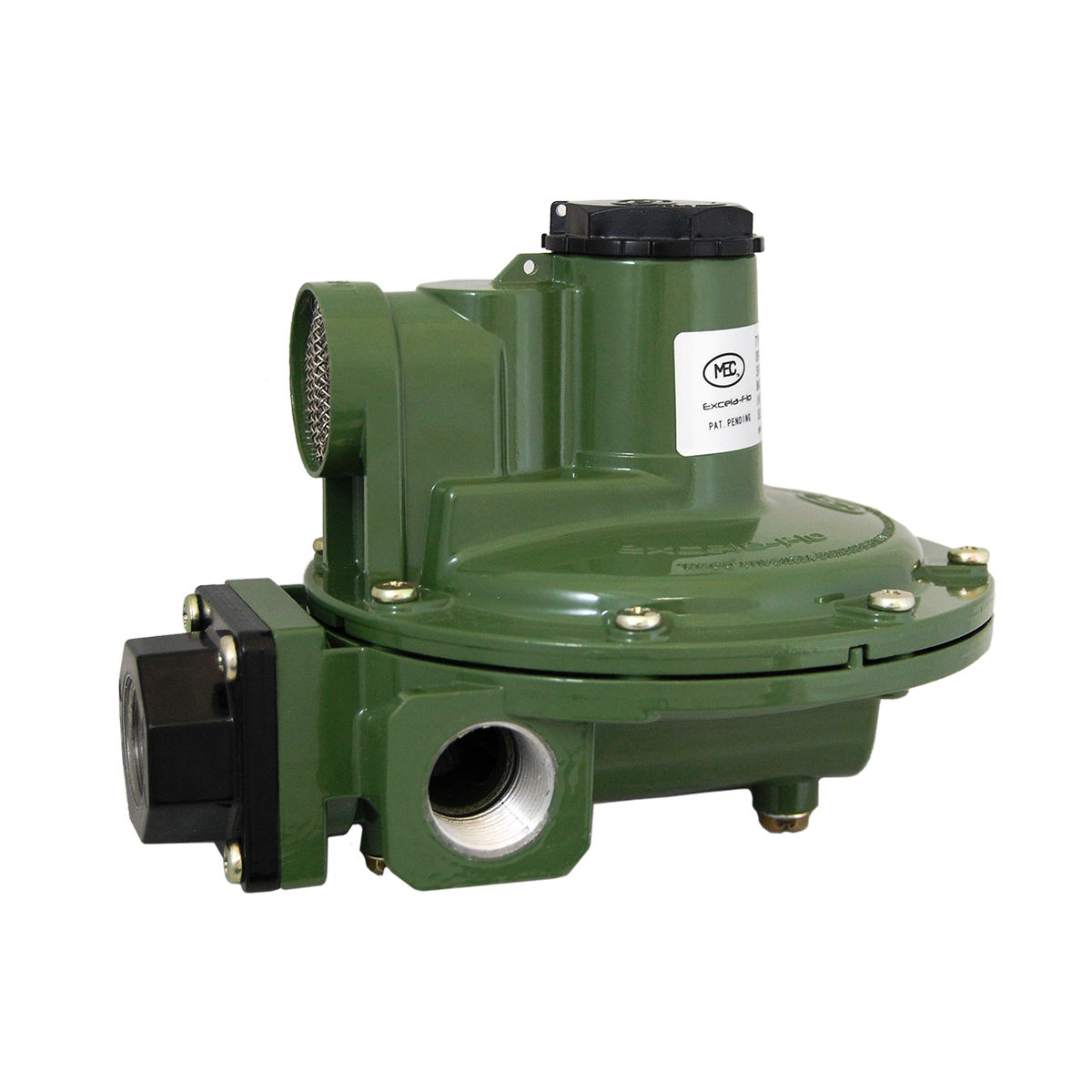

MEGR-1642-DFF

Visit Product Series:

Features an adjustable range from 9-13″ WC (factory set @ 11″ WC), stainless steel internal components, fluorocarbon (FKM) seat discs, molded lip fabric reinforced diaphragms and large aluminum precision machined orifices providing superior downstream regulation and maximum corrosion resistance against weather or contaminated gas.

Markets
Applications
Capacity in BTU H LPG 1 900000
Inlet 3/4″ FNPT
Outlet 3/4″ FNPT
Outlet Adj Range WC 45913
Outlet Set Point WC 11
product type Full Size/Side Outlet
specification Type: Second Stage|Max. Inlet Pressure: 10 PSIG|Exterior Finish: Green Powder Coat|Interior Finish: Green Powder Coat|Orifice Size: 0.219″ (Full)|Diaphragm: Fabric Reinforced (NBR) Molded Lip O-Ring Bonnet / Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Aluminum|Seat Material: Fluorocarbon (FKM)|Listings: C US / UL 144|Mounting Holes: Standard 3-1/2″ Center|Pressure Taps: #54 Orifice 1/8″ FNPT Plugged (2)|Relief Travel Stop: Molded In Adjustment Cap - Black
Type Full Size Side Outlet
