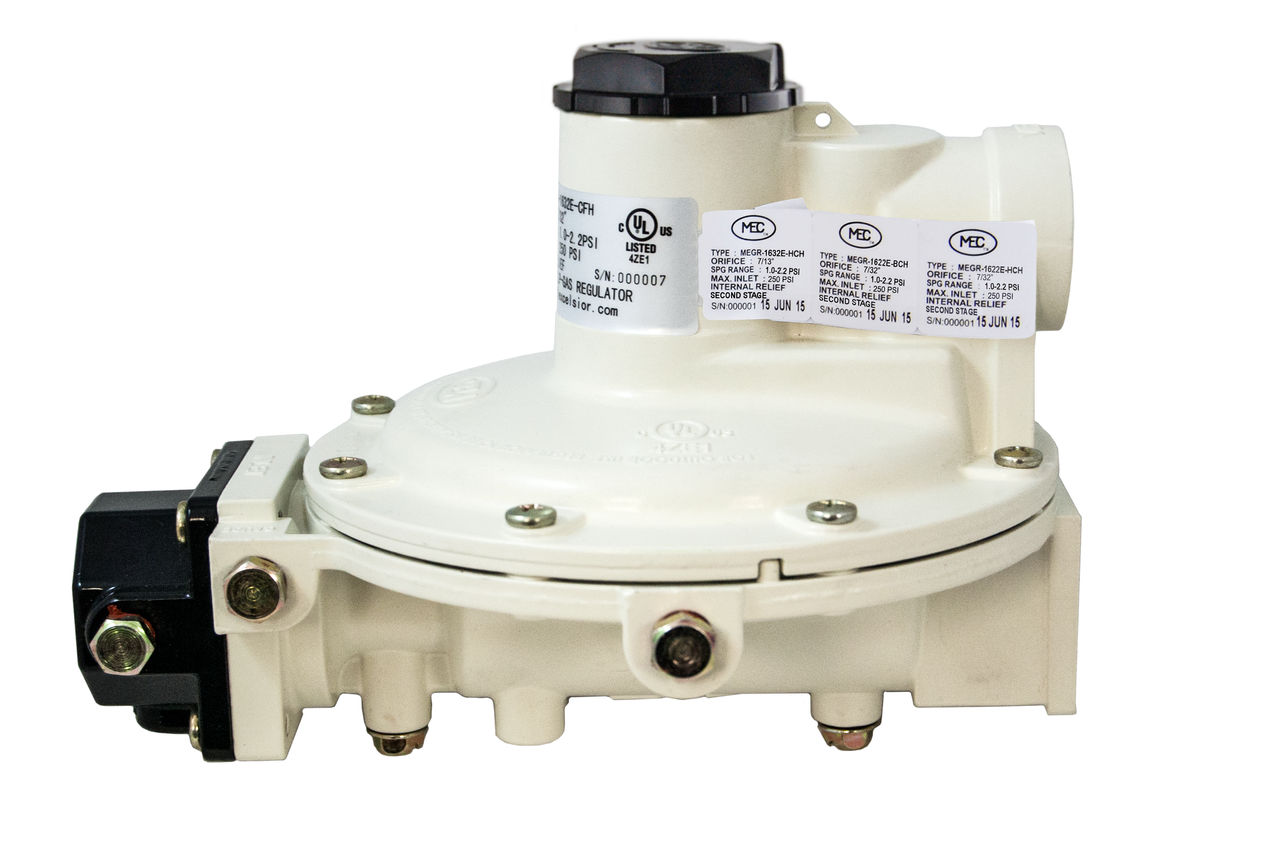

MEGR-1632E-BCH

Visit Product Series:

Offers all of the same features_and_benefits as the compact MEGR-1232E series in a full size high capacity version. The full size MEGR-1632E diaphragm provides superior downstream regulation, has heavy duty wrench flats and a large 3/4″ FNPT tapped drip lip vent to help prevent relief vent blockage.

Markets

Applications

Specifications

Capacity in BTU H LPG 1 850000

Inlet 1/4″ FNPT

Outlet 1/2″ FNPT

Outlet Adj Range PSI 37258

Outlet Set Point PSI 2

product type Full Size - 2 PSI

specification Type: Integral Two-Stage 2 PSI|Max. Inlet Pressure: 250 PSIG|Exterior Finish: White Powder Coat|Interior Finish: White Powder Coat|Orifice Size: 0.17″ (Compact) & 0.219″ (Full)|Seat Material: Fluorocarbon (FKM)|Diaphragm: Fabric Reinforced NBR / Molded Lip O-Ring Bonnet/Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Aluminum|Listings: C US / UL 144|Mounting Holes: Standard 3-1/2″ Center|Pressure Taps: #54 Orifice 1/8″ FNPT Plugged (3)|Relief Travel Stop: Molded in Adjustment Cap - Gray (Compact), Black (Full Size)

Type Full Size
