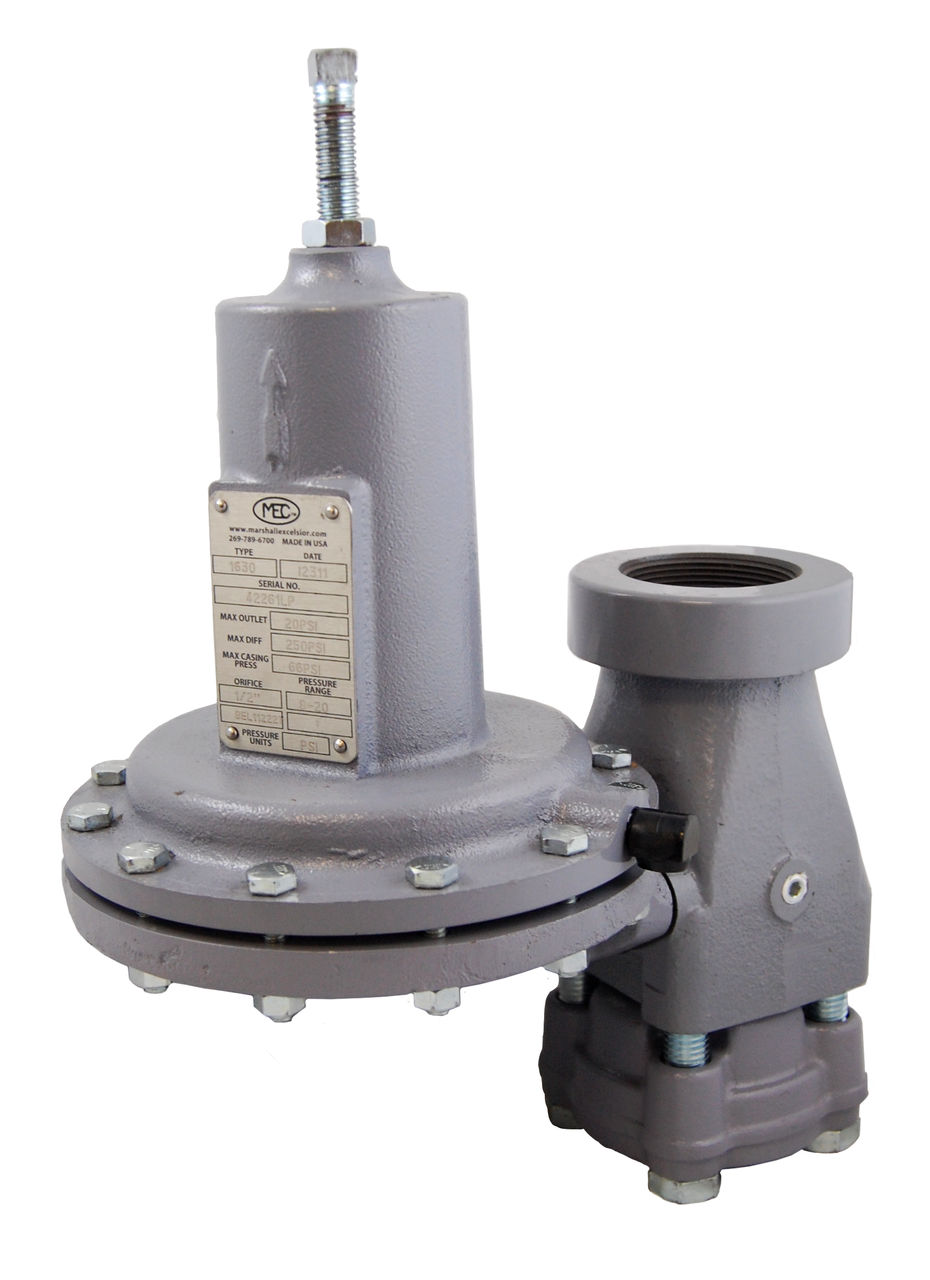

    MEGR-1630-104-78

    Visit Product Series:

    First Stage / Industrial regulators are large capacity, high pressure units for use in conjunction with MEGR-S1202 Series regulators. They can also be used on final stage (pounds-to-pounds) service. These regulators are best suited for industrial applications where high flow capacity is required.

    Markets
    Applications
    Certification
    Documents
    Installation Guides
    Specifications
    BTU H LPG 100 PSI Inlet 47000000
    BTU H LPG 20 PSI Inlet 7700000
    Inlet 2″ FNPT
    Orifice 1/2″
    Outlet 2″ FNPT
    outlet_set_point_imperial2 10
    product type Adjustable / PSI
    psig_outlet_range 45889
    SCFH HR LPG 18900
    specification Type: Adjustable / PSI|Orifice Diameter: 3/8″ or 1/2″|Orifice Material: Aluminum|Max. Inlet Pressure: 250 PSI|Regulator Spring: Steel|Stem Guide / Disk Holder: Stainless Steel|Valve Stem: Steel|Exterior Finish: Grey Powder Coat|Diaphragm: Fabric Reinforced Nitrile (NBR)|Bonnet Cap & Housing/Body Material: Cast Aluminum/ Iron|Temp. Range: -20° F. / 180° F.|Listings: Select models are UL Listed / UL 144
