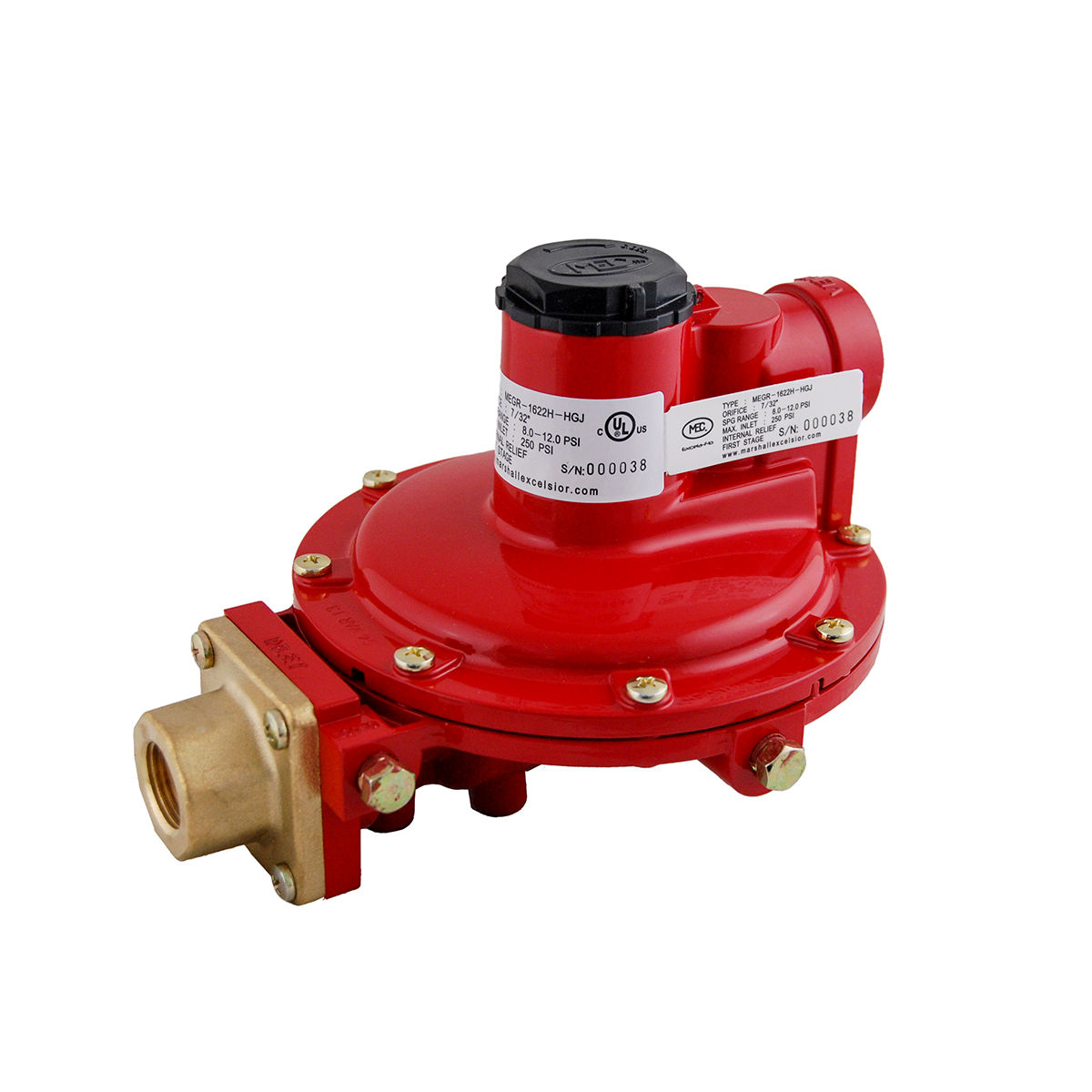

    MEGR-1622H-JGJ

    Visit Product Series:

    Offers all of the same features and benefits as the compact MEGR-1122H Series in a full size version. Our full size MEGR-1622H Series has a large fabric reinforced diaphragm for superior downstream regulation, heavy duty wrench flats, and a large 3/4″ FNPT tapped drip lip vent to help prevent relief vent blockage.

    Markets
    Applications
    Certification
    Documents
    Installation Guides
    Specifications
    Capacity in BTU H LPG 1 2750000
    Inlet F. POL
    Outlet 3/4″ FNPT
    Outlet Adj Range PSI 45881
    Outlet Set Point PSI 10
    product type Full Size
    specification Type: First Stage|Max. Inlet Pressure: 250 PSIG|Exterior Finish: Red Powder Coat|Interior Finish: Red Powder Coat|Orifice Size: 0.219″|Diaphragm: Fabric Reinforced NBR Molded Lip O-Ring Bonnet/Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Aluminum|Seat Material: Fluorocarbon (FKM)|Listings: C US / UL 144|Mounting Holes: Standard 3-1/2″ Center|Pressure Taps: #54 Orifice, 1/8″ FNPT, Plugged (2)|Relief Travel Stop: Molded in Adjustment Cap - Black
    Vent Port 3/4″ FNPT
