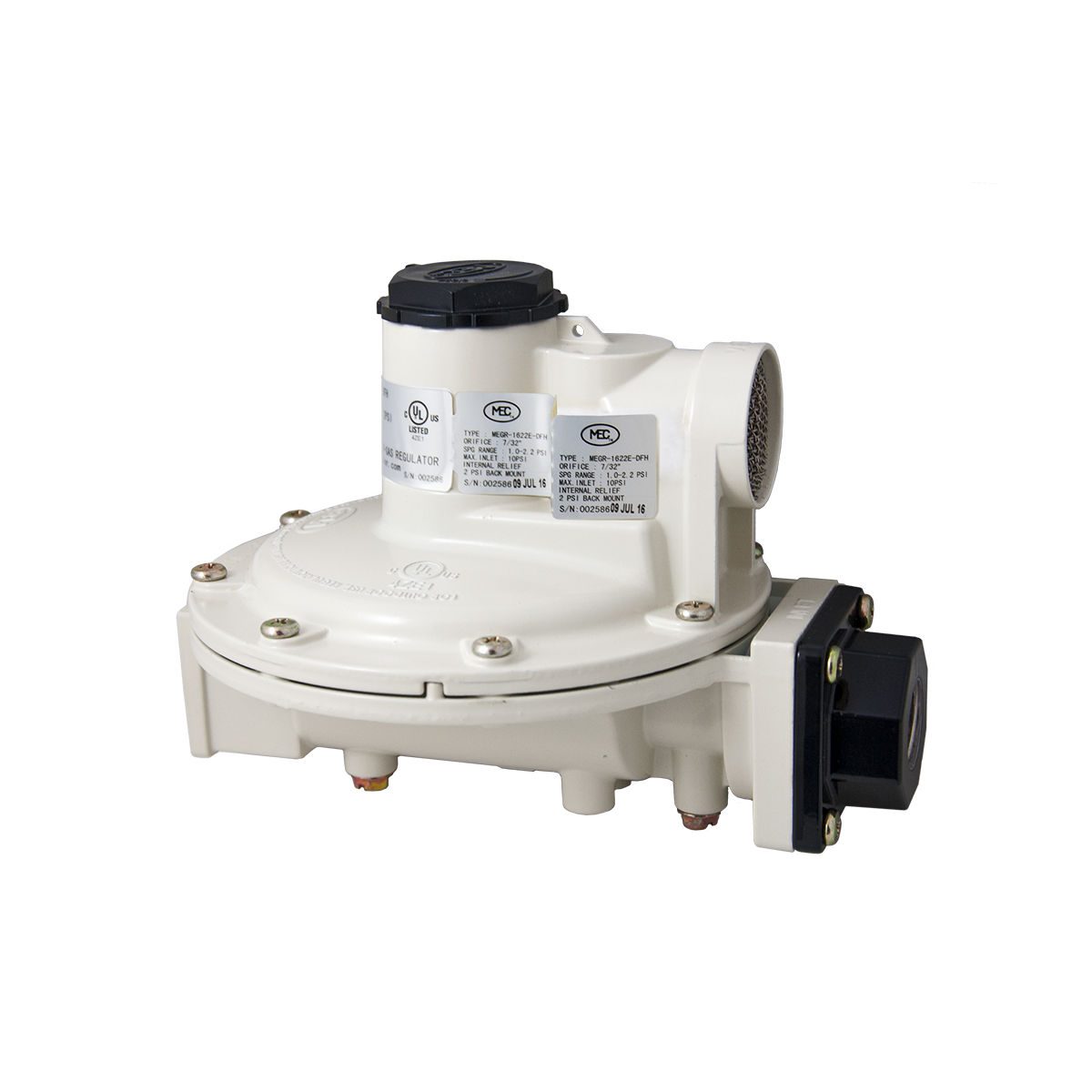

    MEGR-1622E-BCH

    Visit Product Series:

    Offers a full size high capacity molded lip fabric reinforced diaphragm, stainless steel internal components, fluorocarbon (FKM) seat discs, precision machined aluminum orifices, and an adjustment range from 1.0-2.2 PSI (factory set @ 2 PSI) providing superior downstream regulation and maximum corrosion resistance against weather or contaminated gas.

    Markets
    Applications
    Certification
    Documents
    Installation Guides
    Specifications
    Capacity in BTU H LPG 1 1100000
    Inlet 1/2″ FNPT
    Outlet 1/2″ FNPT
    Outlet Adj Range PSI 1.0-2.2
    Outlet Set Point PSI 2
    product type Full Size - 2 PSI
    specification Type: Second Stage 2 PSI|Max. Inlet Pressure: 10 PSI|Exterior Finish: White Powder Coat|Interior Finish: White Powder Coat|Orifice Size: 0.219″|Seat Material: Fluorocarbon (FKM)|Diaphragm: Fabric Reinforced (NBR) / Molded Lip O-Ring Bonnet/Body Seal|Relief Type: Internal Relief - Spring Loaded|Bonnet / Body Material: Die Cast Aluminum|Listings: C US / UL 144|Mounting Holes: Standard 3-1/2″ Center|Pressure Taps: #54 Orifice, 1/8″ FNPT, Plugged (2)|Relief Travel Stop: Molded in Adjustment Cap - Black
    Type Full Size
    Vent Port 3/4″ FNPT
