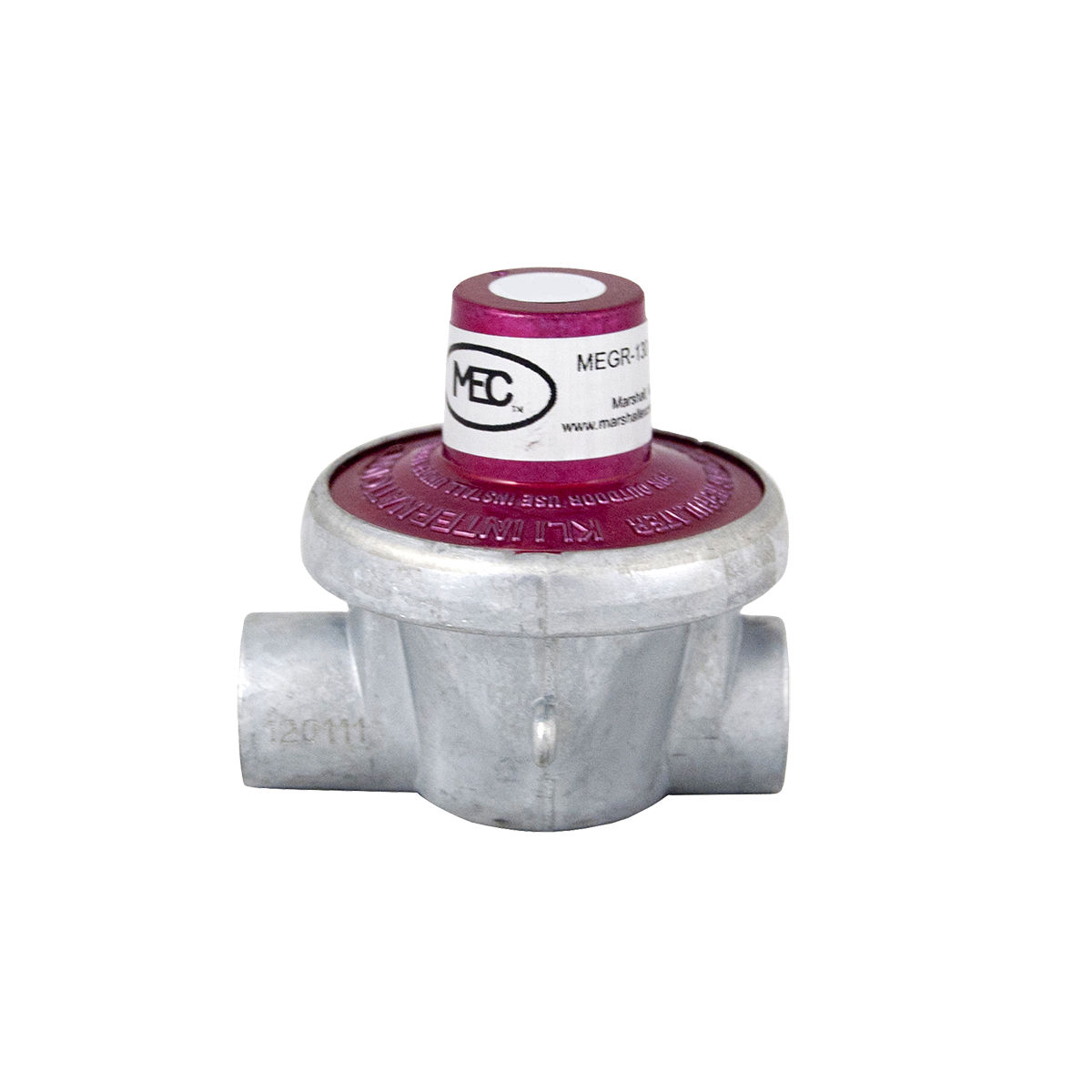

MEGR-130-30

Visit Product Series:

fixed high pressure single stage regulators are designed to provide an economical solution for pounds to pounds service applications. The MEGR-130 can be used to regulate air as well as LP gas. Regulators must be installed in compliance with federal, state or local codes or laws in accordance with NFPA 58.

Markets
Applications
product type Fixed / PSI
specification Type: Adjustable or Fixed / PSI|Max. Inlet Pressure: 250 PSIG (17,2 bar)|Inlet Connection: 1/4″ FNPT|Outlet Connection: 1/4″ FNPT|Orifice Diameter: 0.0625″|Exterior Finish: Red Anodized|Diaphragm: Fabric Reinforced Buna N|Bonnet/Body Material: Die Cast Zinc|BTU / H Capacity: 1,200,000 BTU/H @ 40 PSI|Listings: UL LISTED / UL 144
