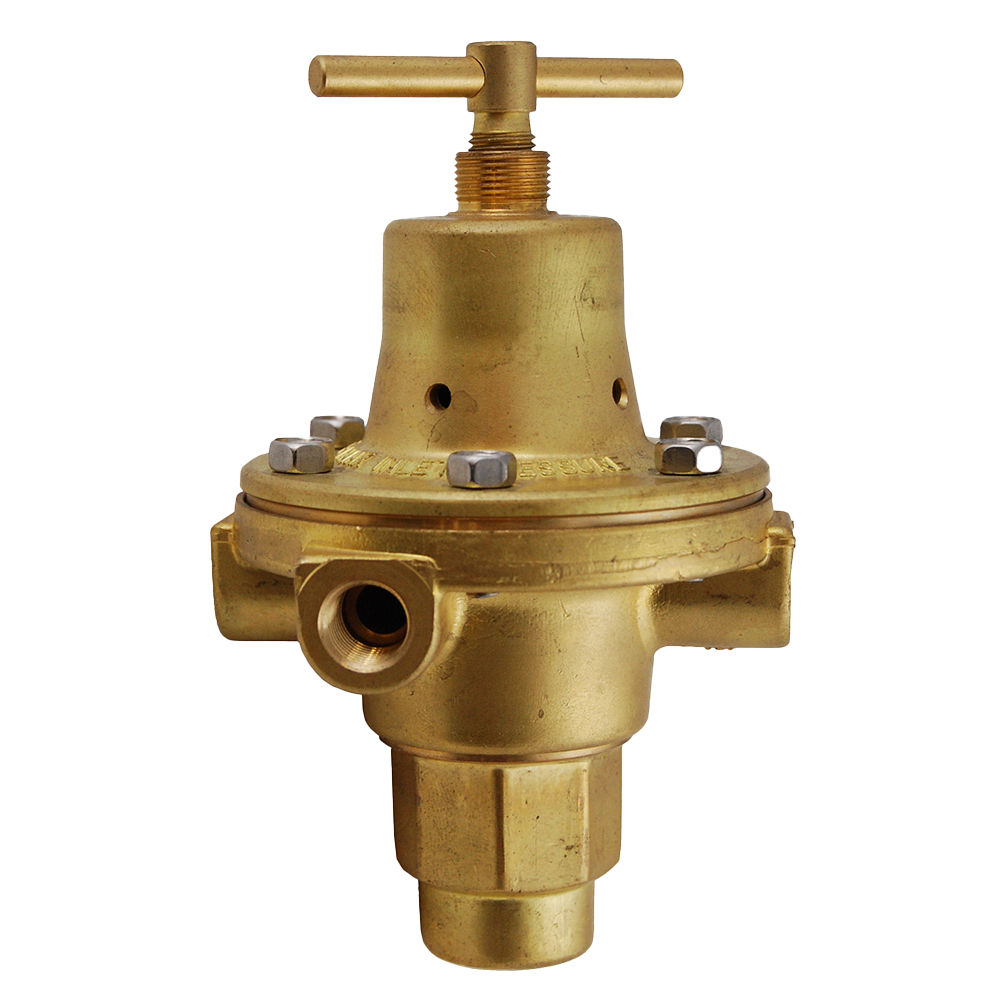

    MEGR-11301F

    Visit Product Series:

    reliable and accurate regulator making it ideal for numerous high pressure applications. This multi-purpose regulator can be used as a pilot supply or pressure-loading regulator where high pressure operating medium must be reduced for use by gas regulator pilots or pressure-loaded regulators. Its rugged design and multiple outlet ports offer versatility for a wide variety of applications.

    Markets
    Applications
    Certification
    Documents
    Installation Guides
    Specifications
    Inlet 1/4″ FNPT (1 Port)
    Outlet 1/4″ FNPT (3 Ports)
    outlet_pressure_range_psig 0-120
    product type Adjustable / PSI
    specification Type: Adjustable / PSI|Max. Inlet Pressure: 5500 PSIG|Inlet Connection: 1/4″ FNPT (1 Port)|Outlet Connection: 1/4″ FNPT (3 Ports)|Exterior Finish: Brass|Bonnet / Body Material: Brass|Bottom Cap and Spring Case: Brass|Gasket: Nitrile (NBR)|Valve Spring: Stainless Steel|Diaphragm: Stainless Steel|Valve Disks: Nylon|Vent: 4 Holes (5/32″ each)|Temp. Range: -40° F. / 225° F.
