ME459

Visit Product Series:

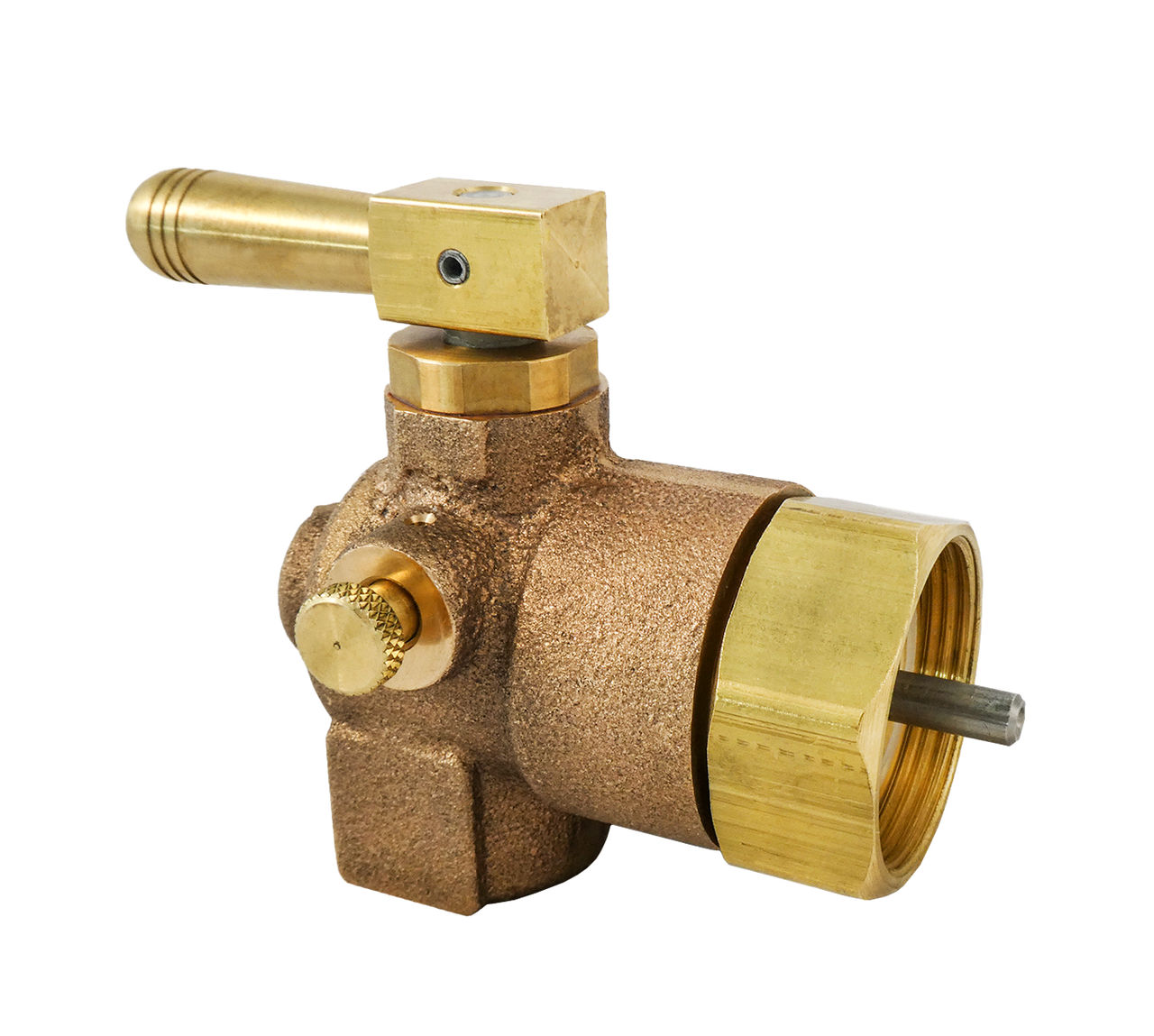

The ME459 Liquid Evacuation Adapter is designed to work in conjunction with the ME462 Series liquid withdrawal tank valves (or similar valve construction) to facilitate liquid evacuation of storage containers in preparation for transport or service. The built-in nylon gasket ensures a complete seal when mated to the liquid withdrawal tank valve and the manual control lever allows the operator to mechanically open the internal check mechanism of the lliquid withdrawal tank valve, without need for back pressure to unseat the system for liquid withdrawal operations.

Markets
Applications
inlet tank connection 1-5/8-12 UNF
Length 4-3/16”
liquid transfer valve features_and_benefits "• For use in LPG applications" "• Brass construction with bronze body casting" "• Stainless steel internal components" "• Built in Nylon gasket" "• Integrated bleeder valve for controlled liquid withdrawal line blowdown"
Material Brass
outlet tank connection 3/4” FNPT
wrench flats 1-3/4”
